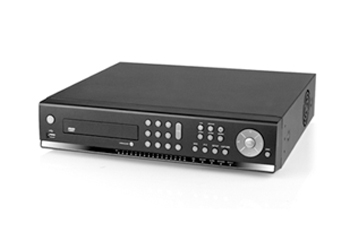

FULL D1 STANDARD SERIES - TND-0820S/TND-1640S
• Key Features
- HD Display through HDMI (1920x1080)- D1 Real time recording & playback
- Quick & Easy Search Function
- 8CH /16CH audio input and 1CH audio output
- Simultaneous video out (VGA & BNC)
- Spot Monitor
- PTZ function
- Remote configuration & Firmware upgrade
- Quick setup for easy & fast configuration
- Alarm, Motion Detection, Video Loss, HDD Failure
- E-mail notification
- N.T.P (Network Time Protocol)
- S.M.A.R.T
- Easy Backup (USB & DVD)
- Multiple language
- Dual Streaming
- Digital Zoom Function on the network client
software
- Smart Phone Viewer for i-Phone and Android
- MAC Client Software
• Technical Specifications
| ITEM | TND-0820S | TND-1640S | |||
| Video | Input | Channel, Input Level | 8/16CH Composite, 1.0Vp-p, 75ohm | ||
| Signal Format | NTSC/PAL | ||||
| Output | Main Monitor | 1 HDMI (MAX. 1920 x 1080) | |||
| Sub Monitor | 1 VGA & 1 CVBS & 4 SPOT | ||||
| Audio | Input & Output | 8CH / 16CH input & 1 CH RCA snd HDMI out | |||
| Audio Codec | G.711 | ||||
| Alarm | Sensor Input | 8ch (NC/NO Selectable) | 16ch (NC/NO Selectable) | ||
| Alarm Out | 2/4 Alarm out by Sensor, Motion and Video Loss | ||||
| Record | Compression | H.264 | |||
| Multi-operation | QUADPLEX (Playback/Record/Network/Backup) | ||||
| Resolution (NTSC/PAL) | D1 | 240/200fps | 480/400fps | ||
| Half D1 | 240/200fps | 480/400fps | |||
CIF |
240/200fps | 480/400fps | |||
| Recording quality grade | 5 LEVELS | ||||
| Recording Mode | Continuous / Schedule / Motion/ Sensor/ Manual | ||||
| Pre Recording | Up to 20 MIN | ||||
| Post Recording | Up to 60 SEC | ||||
| Display | Frame Rate ( /Sec) | NTSC: 30fps/ch, 60 fields / PAL: 25fps/ch, 50 fields | |||
| Playback | Multi-Decoding | 1, 4, 8 | 1, 4, 8, 16 | ||
| Playback Speed | Single channel | x 0.25, 0.5, 2, 4, 8, 16, 32 |
|||
| Multi-channels | x 0.25, 0.5, 2, 4, 8, 16, 32 | ||||
| Storage | HDD | Capacity of 1 HDD | 2TB | ||
| Internal HDD No. | 2 (4: w/o DVDRW) | ||||
| USB Port | 2EA FOR RAID & 2EA (Front 1, Rear 1) | ||||
| Backup | USB Flash drive | Video &Still Image | |||
| ODD | Optional | ||||
| Huge Backup | Yes (up to 24 hours) | ||||
| Network | Video &Still Image | ||||
| User I/F | Input Method | Front Buttons, Remote control, Mouse, Keyboard controller | |||
| Serial port | POS | 1 RS-232C | |||
| PTZ & Keyboard control | 2 RS-485 | ||||
| Termination | Yes | ||||
| Network | Dynamic DNS | Yes (Free DDNS) | |||
| Dual Encoding for Network | D1/CIF 240fps/2000fps | D1/CIF 480fps/400fps | |||
| Network Access | Web viewer (1:1) | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | |||
| Client Software: UMs Single (1:1) | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | ||||
| Multi-sites Monitoring System | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | ||||
| Features | Digital Zoom | Yes | |||
| Watermarking | Yes | ||||
| DLS (Day Lingt Saving) | Yes | ||||
| NTP (Network Time Protocol) | Yes | ||||
| S.M.A.R.T | Yes | ||||
| Internal Beep | By Video Loss, HDD error | ||||
| Multi-Language | Yes (more than 20 languages) | ||||
| 3G Mobile | iPhone / Android / Blackberry | ||||
| Power | Power Supply Voltage | AC 100~120V/200~240V, 50/60Hz, 280W | |||
| Temperature | Operation Temperature | 5°C - 40°C, During storage: -10°C - +50°C | |||
| Weight | Unit Weight (Gross weight) | 6.8 kg (9.0 kg) / 15.0 lbs (19.8 lbs) | |||
| Dimension | Unit Dimension (W x H x D) | 432mm x 430mm x 98mm (17.00" x 16.92" x 38.58") | |||
