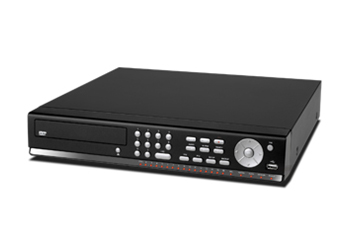

D1 MIGHTY SERIES - TN-0440M/TN-0840M/TN-1640M
• Key Features
- Real time recording & playback- Quick & Easy Search Function
- 4CH audio input and 1CH audio output
- Simultaneous video out (VGA & BNC)
- Spot Monitor
- Support PTZ Camera
- Remote configuration & Firmware upgrade
- Quick setup for easy & fast configuration
- Alarm, Motion Detection, Video Loss, HDD Failure
- E-mail notification
- N.T.P (Network Time Protocol)
- S.M.A.R.T
- Easy Backup (USB & DVD)
- Multiple language
- Dual Streaming
- Digital Zoom Function on the network client
software
- Smart Phone Viewer for i-Phone and Android
- MAC Client Software
• Technical Specifications
| ITEM | TN-0440M | TN-0840M | TN-1640M | |||
| Video | Input | Channel, Input Level | 4/8/16CH Composite, 1.0Vp-p, 75ohm | |||
| Signal Format | NTSC/PAL | |||||
| Output | Main Monitor | 1 VGA (Up to 1280x1024) | ||||
| Sub Monitor | 1 CVBS and 1SPOT | |||||
| Audio | Input & Output | 4 CH Line input & 1 CH Line output | ||||
| Audio Codec | G.711 | |||||
| Alarm | Sensor Input | 4 ch (NC/NO Selectable) | ||||
| Alarm Out | 1 Alarm out by Sensor, Motion and Video Loss | |||||
| Record | Compression | H.264 | ||||
| Multi-operation | QUADPLEX (Playback/Record/Network/Backup) | |||||
| Resolution (NTSC/PAL) | D1 | 120/100fps | 120/100fps | 120/100fps | ||
| Half D1 | 120/100fps | 240/200fps | 240/200fps | |||
CIF |
120/100fps | 240/200fps | 480/400fps | |||
| Recording quality grade | 5 LEVELS | |||||
| Recording Mode | Continuous / Schedule / Motion/ Sensor/ Manual | |||||
| Pre Recording | Up to 20minutes | |||||
| Post Recording | Up to 60minutes | |||||
| Display | Frame Rate ( /Sec) | NTSC: 30fps/ch, 60 fields / PAL: 25fps/ch, 50 fields | ||||
| Playback | Multi-Decoding | 1, 4 | 1, 4, 8 | 1, 4, 8, 16 | ||
| Playback Speed | Single channel | × 2, 4, 16, 32, 64 | ||||
| Multi-channels | × 2, 4, 16, 32 | × 2, 4, 16 | × 2, 4, 8 | |||
| Storage | HDD | Capacity of 1 HDD | 2TB | |||
| Internal HDD No. | 1EA (Max 2EA: w/o DVDRW) | |||||
| USB Port | 2 (Front 1, Rear 1) | |||||
| Backup | USB Flash drive | Video &Still Image | ||||
| ODD | YES (Optional) | |||||
| Huge Backup | Yes (up to 24 hours) | |||||
| Network | Video &Still Image | |||||
| User I/F | Input Method | IR Remote control, Front Button, Mouse, Keyboard controller | ||||
| Serial port | POS | 1 RS-232C | ||||
| PTZ & Keyboard control | 1 RS-485 | |||||
| Termination | Yes | |||||
| Network | Dynamic DNS | Yes (Free DDNS) | ||||
| Dual Encoding for Network | CIF 60fps/50fps | CIF 120fps/100fps | ||||
| Network Access | Web viewer (1:1) | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | ||||
| Client Software: UMs Single (1:1) | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | |||||
| Multi-sites Monitoring System | Live, Search, Backup, PTZF Cam Control, Remote Setup/Upgrade | |||||
| Features | Digital Zoom | N/A | ||||
| Watermarking | Yes | |||||
| DLS (Day Lingt Saving) | Yes | |||||
| NTP (Network Time Protocol) | Yes | |||||
| S.M.A.R.T | Yes | |||||
| Internal Beep | By Video Loss, HDD error | |||||
| Multi-Language | Yes (more than 20 languages) | |||||
| 3G Mobile | iPhone / Android / Blackberry | |||||
| Power | Power Supply Voltage | DC 12V 5A | ||||
| Temperature | Operation Temperature | 5°C - 40°C, During storage: -10°C - +50°C | ||||
| Weight | Unit Weight (Gross weight) | 4.1Kgs (6.2Kgs) | ||||
| Dimension | Unit Dimension (W x H x D) | 380mm x 340mm x 72mm | ||||
