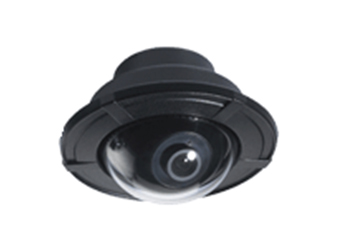

VANDAL DOME CAMERA - TNV-Q65BAB36
• Key Features
- 1/3" 2.1Megapixel CMOS Sensor- 1080(1920x1080)@30fps
- High resolution digital zoom (x112)
- Mirror, Flip, Still On / Off
- Privacy Zone
- OSD (On Screen Display)
- DNR (Digital Noise Reduction)
- WDR (Wide Dynamic Range)
- HD-SDI/CVBS Output
- 3.6mm 3Megapixel board lens
- DC12V
• Technical Specifications
| ITEM | Full HD Mega pixel CAMERA |
| Image Sensor | 1/3" 2.1Megapixel CMOS |
| Total Pixels | 2010(H)x1108(V) (2,227,080 Pixels) |
| Active Pixels | 1944(H)x1092(V) (2,122,848 Pixel) |
| Scanning System | Progressive |
| Resolution | Digital : 1920x1080p(1080p/30fps), 1280x720p(720p/60fps) |
| Min. Illumination | 0.1 Lux (F1.2, 50IRE, AGC Max) |
| S/N Ratio | more than 50dB (AGC off) |
| White Balance | AUTO / PUSHING / MANUAL |
| Video Output | HD SDI / CVBS : 1.0Vp-p (75Ω) |
| Shutter speed | Auto / Manual Selectable |
| OSD | Built-in |
| WDR/BLC/OFF | WDR/BLC/OFF Selectable |
| AGC | 0~11 steps |
| DNR | OFF / LOW / MIDDLE / HIGH |
| Day & Night | Auto / BW / Color / EXT |
| DZOOM | OFF / ON (0 ~ 112 STEPS) |
| MIRROR, FLIP, STILL | OFF / ON |
| Privacy | OFF / ON |
| Power Supply | DC 12V ± 10%, 200mA |
| Operating temperature | -10กษ~+50กษ |
| Operating Humidity | 0~90% RH |
| Dimension | 57mmX88mmX58mm |
| Weight | 500g |
