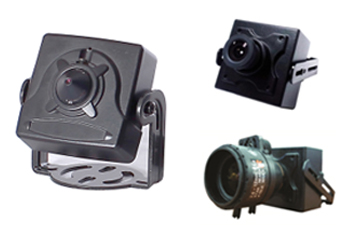

MINI SQUARE CAMERA - TNM-B61CEB36(P37/OPTION)
• Key Features
- 1/3" 2.1Megapixel CMOS Sensor- 1080(1920x1080)@30fps
- High resolution digital zoom (x64)
- PIP(Full Image / Zoom Image)
- Privacy Zone
- OSD (On Screen Display)
- DNR (Digital Noise Reduction, 2D+3D)
- HLC (High Light Compensation)
- HD-SDI/CVBS Output
- 3.6mm 3Megapixel board lens(3.1mm board,
3.7mm pinhole & 2.8~11mm TDN Varifocal option)
- DC12V
• Technical Specifications
| ITEM | Full HD Mega pixel CAMERA |
| Image Sensor | 1/3" 2.1Megapixel CMOS |
| Total Pixels | 2010(H)x1108(V) (2,227,080 Pixels) |
| Active Pixels | 1944(H)x1092(V) (2,122,848 Pixel) |
| Scanning System | Progressive |
| Resolution | Digital : 1920x1080p(1080p/30fps), 1280x720p(720p/60fps) |
| Min. Illumination | 0.02 Lux (Sens-up x60) |
| S/N Ratio | more than 50dB (AGC off) |
| White Balance | ATW / AWC / Manual |
| Video Output | HD SDI / CVBS : 1.0Vp-p (75Ω) |
| Shutter speed | Auto / Manual Selectable |
| OSD | Built-in |
| BLC | BLC / HSBLC / OFF Selectable |
| AGC | High / Middle / Low |
| DNR | 2 DNR / 3 DNR |
| Day & Night | Auto / BW / Color |
| Defog | High / Middle / Low / Off |
| PIP / D-Zoom | On(x2~x64) |
| Power Supply | DC 12V ± 10%, 180mA |
| Operating temperature | -10℃~+50℃ |
| Operating Humidity | 0~90% RH |
| Dimension | 35.5mmX35.5mm |
| Weight | 400g |
