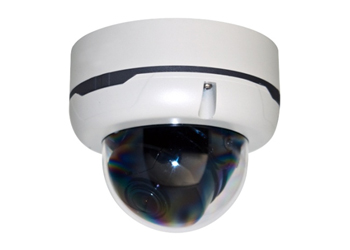

OUTDOOR VANDAL DOME CAMERA - TNV-V63EDH28
• Key Features
- 1/2.9" 2.43M PS CMOS Sensor- f2.8~10mm Varifocal Megapixel ICR lens
- Min. Illumination: 0.0016Lux
- Max. 30fps/Full HD(1920x1080)
- Dual Stream(H.264, M-JPEG)
- POE Option
- SD & USB Interfaces
- Supports ONVIF & PSIA Standards
- Remote access for Web Browser
- Nework Bandwidth Control
- VBR/CBR Mode(32Kbps~12Mbps)
- Event Alarm, e-mail, ftp Function
- RTP/RTSP(Multicast)
- Multi-Level Protection
- Upgrade for Remote Access
- Android/Apple Application SW
• Technical Specifications
| Camera | Image Sensor | 1/2.9" 2.43M Progressive scan CMOS |
| Lens | 2.8-10.0mm Auto Iris Megapixel lens | |
| Min Illumination | 0.0016 Lux | |
| Use | Outdoor | |
| Type | Vandal Dome Camera | |
| Video | Compression | H.264/MJPEG |
| Max Streaming Speed | Max 30fps @ 1920x1080 | |
| Out | - | |
| Bit Rate Control | VBR/CBR (H.264, 32k~12Mbps) | |
| Standard | ONVIF(Profile S) / PSIA(v1.0) | |
| Network | LAN(RJ-45) | 10/100-base-T (optional PoE) |
| Protocol | HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client and etc | |
| Viewer | IE6, Firefox, Safari, etc CMS, QuickTime | |
| Key Function | Remote Admin | Web based administration, setup, control, and upgrade |
| Advanced Service | E-mail / FTP / Alarm buffering Event notification | |
| Dynamic IP | DDNS / uPnP support | |
| Motion Detection | H/W Detection | |
| Security | Multilevel password channel-wise privilege | |
| Hardware | Certification | KC/FCC/CE, RoHS |
| Power Supply | DC 12V, POE option |
