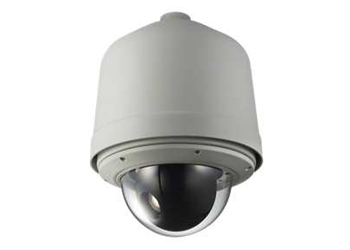

SPEED DOME CAMERA - TISP-V63VAZ20 / 2M IP SPEED DOME
• Key Features
- 1/2.8" 3.2M PS CMOS Sensor- Optical 20x 4.7~94mm
- Min. Illumination: 0.00005Lux TDN/DSS/WDR
- Max. 30fps/Full HD(1920x1080)
- Dual Stream(H.264, M-JPEG)
- Option : POE, Bracket
- SD & USB Interfaces
- Supports ONVIF & PSIA Standards
- Remote access for Web Browser
- Nework Bandwidth Control
- VBR/CBR Mode(32Kbps~12Mbps)
- Event Alarm, e-mail, ftp Function
- RTP/RTSP(Multicast)
- Multi-Level Protection
- Upgrade for Remote Access
- Android/Apple Application SW
• Technical Specifications
| Camera | Image Sensor | 1/2.8" 3.2M Progressive scan CMOS |
| Lens | 4.7 ~ 94.0mm 20x optical, 12x digital | |
| Min Illumination | 0.00005 Lux | |
| Use | IN/Outdoor | |
| Type | High Speed PTZ Dome Camera | |
| Video | Compression | H.264/MJPEG |
| Max Streaming Speed | Max 30fps @ 1920x1080 | |
| Out | - | |
| Bit Rate Control | VBR/CBR (H.264, 32k~12Mbps) | |
| Standard | ONVIF(Profile S) / PSIA(v1.0) | |
| Audio | IN/OUT | 2 way(1 in / 1 out) |
| Compression | 8bit G.711, 8Khz, 8KByte/sec | |
| Interface | Alarm In/Out | 1 DI / 1 DO |
| Serial Port | RS-232C/RS-485 | |
| Peripheral Interface | - | |
| Memory Slot | - | |
| Network | LAN(RJ-45) | 10/100-base-T (optional PoE) |
| Protocol | HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client and etc | |
| Viewer | IE6, Firefox, Safari, etc CMS, QuickTime | |
| Key Function | Remote Admin | Web based administration, setup, control, and upgrade |
| Advanced Service | E-mail / FTP / Alarm buffering Event notification | |
| Dynamic IP | DDNS / uPnP support | |
| Motion Detection | H/W Detection | |
| Security | Multilevel password channel-wise privilege | |
| Hardware | Certification | KC/FCC/CE, RoHS, IP66 |
| Working Condition | -40กษ ~ +50กษ / 10% ~ 90% RH | |
| Power Supply | SMPS, DC 12V/3A AC 100/240V, 50/60HZ, 1.2A | |
| Size/Weight | 235pi x 314(H) (in mm) About 5.5Kg w/o SMPS & brac. |
