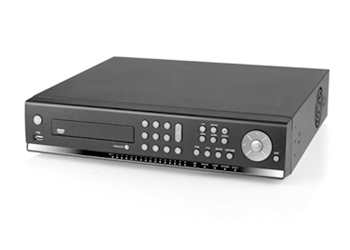

HYBRID HD SDI DVR - TCM-1040S (2CH HD + 8CH D1)
• Key Features
- 2CH HD & 8CH D1 Recording & Playback- FULL HD Display (1920 x 1080)
- Flexible Digital Zoom-in Function on LIVE and
Playback
- Quick & Easy Search Function
- 10CH audio input and 1CH audio output
- 4 SATA HDD Bays (MAX 8TB)
- PTZ function
- Remote configuration & Firmware upgrade
- Quick setup for easy & fast configuration
- Alarm, Motion Detection, Video Loss, HDD Failure
- E-mail notification
- N.T.P (Network Time Protocol)
- S.M.A.R.T
- Easy Backup (USB & DVD)
- Multiple language
- Dual Streaming
- Digital Zoom Function on the network client
software
- Smart Phone Viewer for i-Phone and Android
- MAC Client Software
• Technical Specifications
| ITEM | THD-0405M / THD-0810M | |||
| Video | Input | Channel Input Level | 2CH HD-SDI (720p25/30/50/60, 1080p25/30, 1080i50/60) 8CH Composite, 1.0Vp-p, 750hm | |
Output |
Main Monitor | HDMI (Max. 1920x1080) | ||
| Sub Monitor | VGA (Max. 1920x1080) | |||
| HD-SDI Monitor | N/A | |||
| CVBS | N/A | |||
| SPOT | 2 | |||
| Audio | Input | 10CH Line Input | ||
| Output | 1CH Line and HDMI Output | |||
| Audio Codec | G.711 | |||
| Alarm | Sensor Input | 10CH, NC/NO Selectable | ||
| Alarm Out | 4CH out by Sensor, Motion and Video Loss | |||
| Operation | PentaPlex | Live/Record/Playback/Backup/Network | ||
| Live | Digital Zoom | Zoom-in of specific area | ||
| Channel Sequence | 3 ~ 60 seconds Auto | |||
| Min. Illumination | Compression | H.264 | ||
| Resolution | 2CH Up to 1920x1080 and 8CH Up to 704x480/704x576 | |||
| Recoding Quality Grade | 5 Levels | |||
| Recording Mode | Continuous, Schedule, Motion, Sensor, Manual | |||
| Motion Detection | Setup by Grid | |||
| Pre Recording | Min. 15 seconds and Max. 20 minutes | |||
| Post Recording | 10 ~ 60 seconds | |||
| Playback | Digital Zoom | Zoom-in of specific area | ||
| Speed | FF | x1/4, x1/2, x2, x4, x8, x16and x32 | ||
| FR | x2, x4, x8, x16 and x32 | |||
| Search Mode | Timeline, Event, Archive, Log, Specific Time | |||
| Backup | File Format |
JPEG/Proprietary Format | ||
| Media | USB/External HDD/DVD/Network | |||
| Built-in Viewer | Yes | |||
| Network | Dual Streaming for Live | 1280x720/640x360 60/50fps and D1/CIF 240/200fps | ||
| Playback | H.264 HD 60/50fps & D1/Half-D1/CIF 240/200fps | |||
| Streaming | RTP/RTSP/RTCP | |||
| Protocols | HTTP, DDNS, NTP, SMTP | |||
| Storage | HDD |
Interface | SATA, e-SATA | |
| Max. Capcity of HDD | 2TB | |||
| Max. Internal HDDs | 4EA | |||
| External Storage | 2 e-SATA for RAID | |||
| Filesystem | Self-developed, Reliable and Stable Filesystem | |||
| S.M.A.R.T | HDD Error Check and Reporting | |||
| User Interface | Menu Display | Graphic User Interface | ||
| Input Method | Front Buttons, IR Remote control, Mouse, Keyboard controller | |||
| Serial | POS | 1 RS-232C | ||
| PTZ & Controller | 2 RS-485, HD-SDI | |||
| Network | Ethernet | RJ-45, 10/100/1000Base-T, Auto MDI/MDIX | ||
| Network Access | Web Viewer | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | ||
| Single-site monitoring software | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | |||
| Multi-sites monitoring software | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | |||
| Features | DST (Daylight Saving Time) | Yes | ||
| Internal Beep | By Video Loss, HDD Error | |||
| Multi Language | Yes (more than 20 languages) | |||
| Software Upgrade | By USB, Network Remote Upgrade | |||
| NTP | Yes | |||
| Watermarking | Yes | |||
| 3G Mobile | iPhone, Android, Blackberry | |||
| General | Operation Condition | 0~40C, Humidity 20~80% | ||
| Power | AC 100~120V/200~240V, 50/60Hz, 280W | |||
| Net Weight (Gross Weight) | 6.8 kg (9.0 kg) / 15.0 lbs (19.8 lbs) | |||
| Unit Dimension (W x D x H) | 432mm x 430mm x 98mm (17.00" x 16.92" x 3.86") | |||
