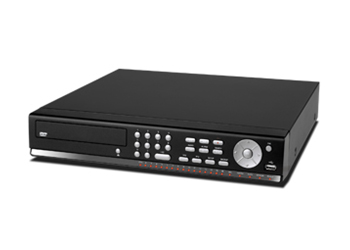

ECO HD SDI DVR - THD-0405M/THD-0810M
• Key Features
- HD Recording & Playback (1280x720 & 1920x1080)- FULL HD Display (1920 x 1080)
- Flexible Digital Zoom-in Function on LIVE and
Playback
- Quick & Easy Search Function
- 4CH audio input and 1CH audio output
- 2 SATA HDD Bays (MAX 4TB)
- PTZ function
- Remote configuration & Firmware upgrade
- Quick setup for easy & fast configuration
- Alarm, Motion Detection, Video Loss, HDD Failure
- E-mail notification
- N.T.P (Network Time Protocol)
- S.M.A.R.T
- Easy Backup (USB & DVD)
- Multiple language
- Dual Streaming
- Digital Zoom Function on the network client
software
- Smart Phone Viewer for i-Phone and Android
- MAC Client Software
• Technical Specifications
| ITEM | THD-0405M / THD-0810M | ||
| Videor | Input | Chnnel Input Level | 4/8CH HD-SDI (720p25/30/50/60, 1080p25/30, 1080i50/60) |
| Output | Main Monitor | HDMI (Max. 1920x1080) | |
| Sub Monitor | VGA (Max. 1920x1080) | ||
| HD-SDI Monitor | N/A | ||
| CVBS | N/A | ||
| SPOT | N/A | ||
| Audio | Input | 4/8CH Line Input | |
| Output | 1CH Line and HDMI Output | ||
| Audio Codec | G.711 | ||
| Alarm | Sensor Input | 4/8CH, NC/NO Selectable | |
| Alarm Out | 1/2CH out by Sensor, Motion and Video Loss | ||
| Operation | PentaPlex | Live/Record/Playback/Backup/Network | |
| Live | Digital Zoom | Zoom-in of specific area | |
| Channel Sequence | 3 ~ 60 seconds Auto | ||
| Min. Illumination | Compression | H.264 | |
| Resolution | Up to 1920 x 1080 | ||
| Recoding Quality Grade | 5 Levels | ||
| Recording Mode | Continuous, Schedule, Motion, Sensor, Manual | ||
| Motion Detection | Setup by Grid | ||
| Pre Recording | Min. 15 seconds and Max. 20 minutes | ||
| Post Recording | 10 ~ 60 seconds | ||
| Playback | Digital Zoom | Zoom-in of specific area | |
| Speed | FF | x1/4, x1/2, x2, x4, x8, x16, x32, x64, x128 and x256 | |
| FR | x2, x4, x8, x16, x32, x64, x128 and x256 | ||
| Search Mode | Timeline, Event, Archive, Log, Specific Time | ||
| Backup | File Format |
JPEG/Proprietary Format | |
| Media | USB/External HDD/DVD/Network | ||
| Built-in Viewer | Yes | ||
| Network | Dual Streaming for Live | 640x360 and 320x180 | |
| Playback | H.264 HD | ||
| Streaming | RTP/RTSP/RTCP | ||
| Protocols | HTTP, DDNS, NTP, SMTP | ||
| Storage | HDD | Interface | SATA, e-SATA |
| Max. Capcity of HDD | 2TB | ||
| Max. Internal HDDs | 2EA | ||
| External Storage | 1/2 e-SATA for RAID | ||
| Filesystem | Self-developed, Reliable and Stable Filesystem | ||
| S.M.A.R.T | HDD Error Check and Reporting | ||
| User Interface | Menu Display | Graphic User Interface | |
| Input Method | Front Buttons, IR Remote control, Mouse, Keyboard controller | ||
| Serial | POS | 1 RS-232C | |
| PTZ & Controller | 1 RS-485 | ||
| Network | Ethernet | RJ-45, 10/100/1000Base-T, Auto MDI/MDIX | |
| Network Access | Web Viewer | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | |
| Single-site monitoring software | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | ||
| Multi-sites monitoring software | Live, Search/Playback, Backup, PTZF, Remote Setup/Upgrade | ||
| Features | DST (Daylight Saving Time) | Yes | |
| Internal Beep | By Video Loss, HDD Error | ||
| Multi Language | Yes (more than 20 languages) | ||
| Software Upgrade | By USB, Network Remote Upgrade | ||
| NTP | Yes | ||
| Watermarking | Yes | ||
| 3G Mobile | iPhone, Android, Blackberry | ||
| General | Operation Condition | 5°C - 40°C, During storage: -10°C - +50°C | |
| Power | DC 12V 5A | ||
| Net Weight (Gross Weight) | |||
| Unit Dimension (W x D x H) | 380mm x 340mm x 72mm (14.96" x 13.38" x 2.83") | ||
