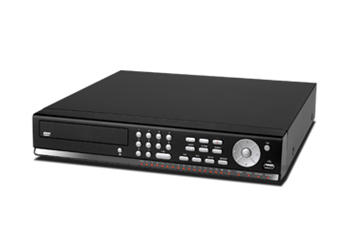

POE HD IP NVR - TNV-0415MP/TNV-0823MP/TNV-1643MP
• Key Features
- 1080P 4CH-100fps, 8CH/16CH-192fps- Dual Display (HDMI & VGA)
- Full HD IP Camera with High Profile
- Digital Zoom in Live & Playback
- Up to X64 search & Playback
- Built in Web Server and supports CMS
- Android, iPhone Mobile Support
- Up to 2 Internal SATA HDD supports
- Max 3TB per Each HDD
- 4 and 8CH POE support
• Technical Specifications
| MODEL | TNV-0415M | TNV-0823M | TNV-1643M | ||
| Videor | INPUT | IP Camera | 4 (20Mbps) | 8 (40Mbps) | 16 (40Mbps) |
| Resolution | Max. 1920x1080 | ||||
| Output | Main Monitor | VGA and HDMI | |||
| Sub Monitor | - | ||||
| Audio | Input | IP Camera (Network) | 4 | 8 | 16 |
| Local Input (RCA) | 4 | 8 | 16 | ||
| Output | Local Output (RCA) | 1 | |||
| Audio Codec | G.711 | ||||
| Event | Sensor In | IP Camera (Network) | 4 | 8 | 16 |
| Local Input (Terminal Block) | 4 | ||||
| Local Alarm Output (Terminal Block) | 1 | ||||
| Motion Detection (from IP Camera) | Yes | ||||
| Serial | RS-232C | Yes | |||
| RS-485 | Yes | ||||
| Network | Private (IP Camera, Auto Connection) | 4 PSE | 8 PSE | 8 PSE | |
| LAN (IP Camera, Remote Access) | 10/100 Base-T | 10/100 Base-T | |||
| Protocols | TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP, ONVIF | ||||
| Recording | Compression | H.264 (Baseline, Main, High Profile) | |||
| Resolution & Frame Rate | D1 | 120fps | 240fps | 480fps | |
| 1280x720 | 120fps | 240fps | 400fps | ||
| 1920x1080 | 100fps | 192fps | 192fps | ||
| Recording Mode | Continuous / Motion / Sensor / Schedule / Manual | ||||
| Pre Recording | Max. 20 Minutes | ||||
| Post Recording | Max. 60 Seconds |
||||
| Playback | Search | Quick Search, Date/Time, Event, Archive, Log | |||
| Multi-Decoding | 1, 4 | 1, 4, 8 | 1, 4, 8, 16 | ||
| Playback Speed | x0.25, x0.5, x2, x4, x8, x16, x32, x64 | ||||
| Backup | Media | USB drive, External HDD, DVD-R, Network | |||
| File Format | BMP, AVI, Proprietary Format | ||||
| Huge Backup | Yes (Max. 24 hours) | ||||
| Storage | HDD | Capacity of 1 HDD | 3TB | ||
| Internal HDDs | 2 (1 with DVD-R) | ||||
| e-SATA | 1 | ||||
| USB | Front | 1 | |||
| Rear | 1 | ||||
| User I/F | Input Method | Front Buttons, IR, Mouse, Keyboard Controller | |||
| Features | Dynamic DNS | Yes (Free DDNS) | |||
| Digital Zoom | Yes | ||||
| DLS (Day Light Saving) | Yes | ||||
| NTP (Network Time Protocol) | Yes | ||||
| S.M.A.R.T | Yes | ||||
| Internal Beep | Yes | ||||
| Multi-Language | Yes | ||||
| e-mail Notification | Yes | ||||
| Network Access | 3G Mobile | iPad / iPhone / Android | |||
| Web Viewer | Windows (IE, Chrome, Firefox, Safari), MAC(TBD) | ||||
| PC Client | Single / Multi Client and CMS (64 channels) | ||||
| Remote Setup and Upgrade | Yes | ||||
| Power | Power Supply Voltage | DC 12V 5A + 48V 1A | DC 12V 5A + 48V 2ª | ||
| Temperature | Operation Temperature | 5°C - 40°C, During storage: -10°C - +50°C | |||
| Weight | Unit Weight (Gross weight) | ||||
| Dimension | Unit Dimension (W x H x D) | 380mm x 340mm x 72mm | |||
